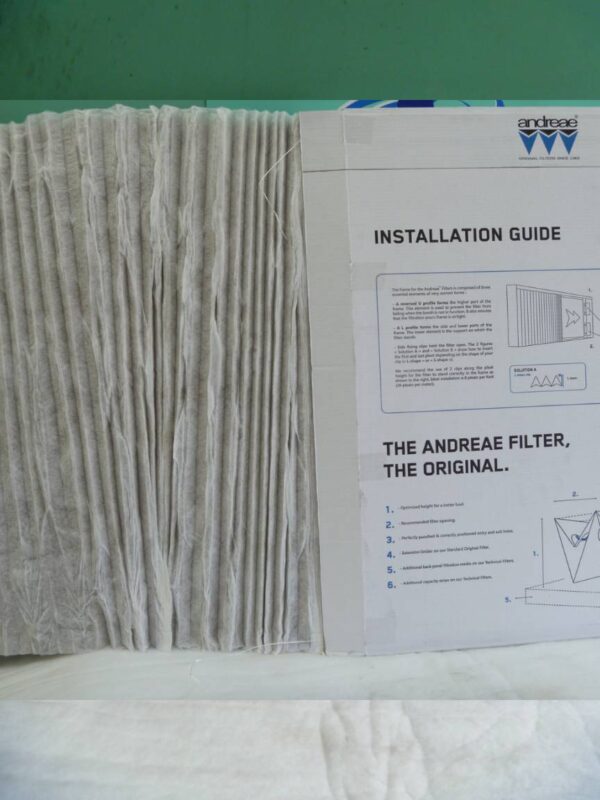

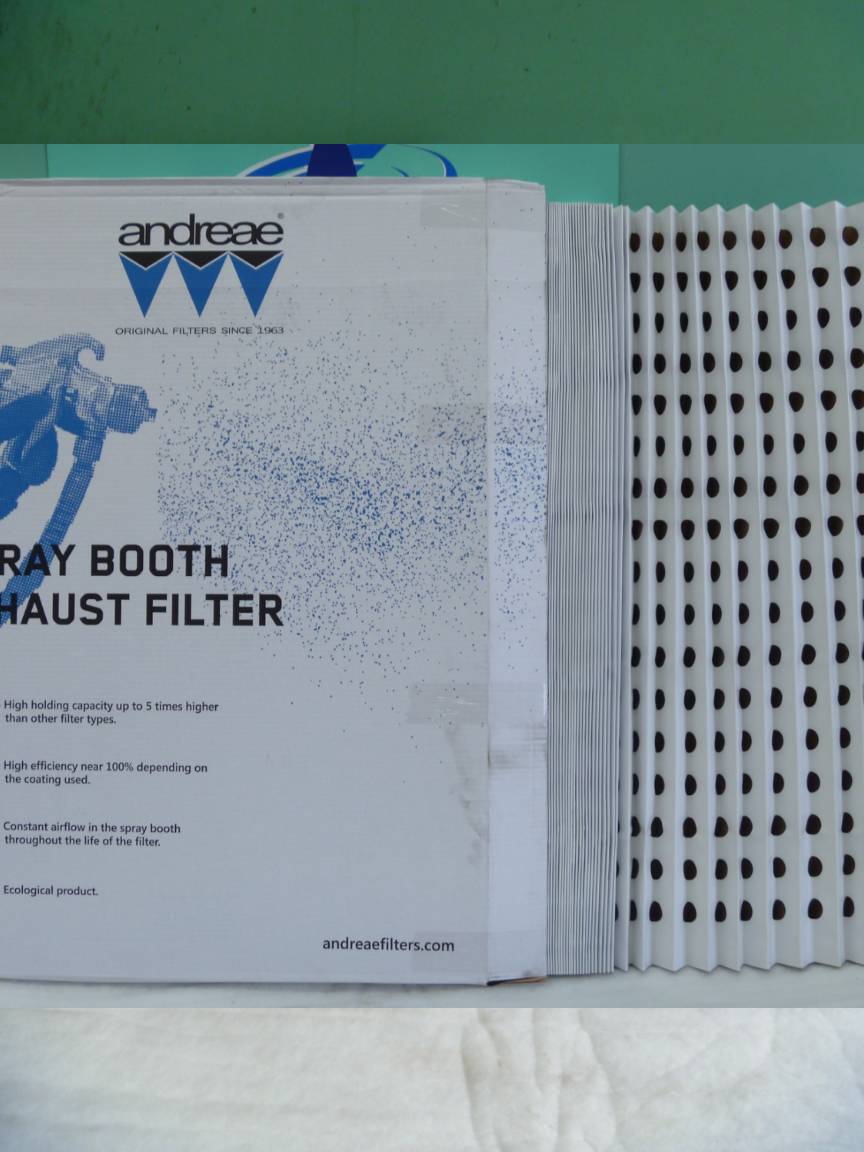

Andreae High Efficiency Cardboard Exhaust Filter 900mm x 9.2m Box

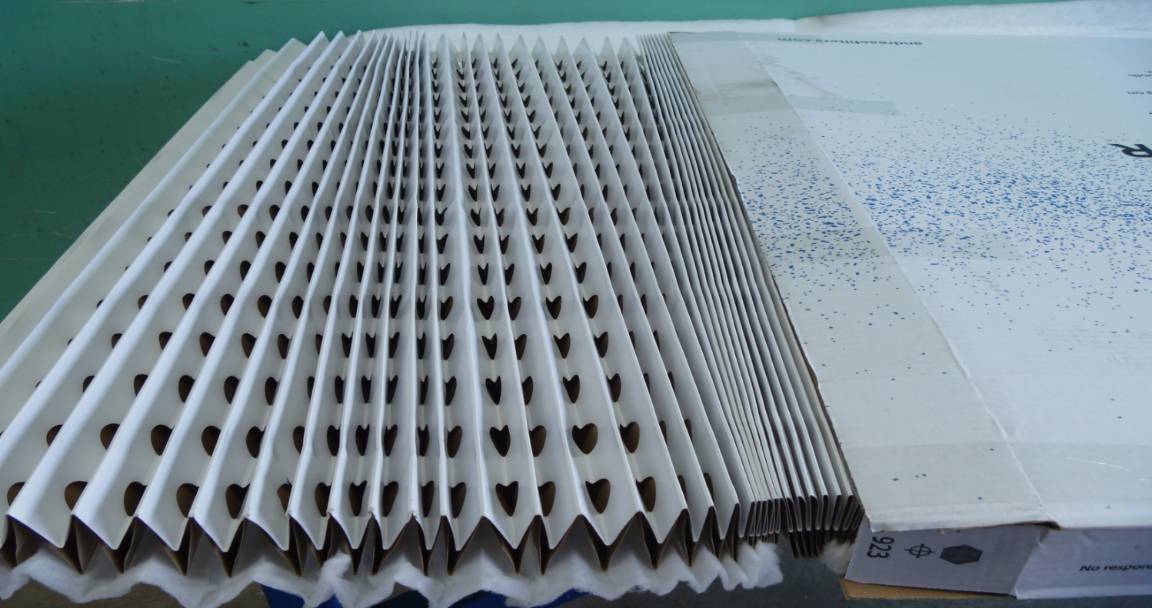

The Andreae HE Original Filter will bring a filtration efficiency near 100% while keeping the high loading capacity of the Andreae Original filter. The HE is made with 2 layers of heavy “kraft” paper, punched, pleated and glued together completed with a polyester layer on its back increasing its filtration efficiency
$140.00
Load lb./ft2
Lacquers: 2.24
High Solids: 2.70
Polyester: 2.93
Efficiency %
Lacquers: 97.90
High Solids: 99
Polyester: 99.40
Recommended Air Velocity
0.5 to 1m/s
Pressure drop at / by
0.5m/s: 21pa
0.75m/s: 32pa
1.0m/s: 42pa
Max. recommended pressure drop
128 pa (possible up to 256)
Product Dimensions : 9.2m L x 900mm H
Shipping Dimensions : BOX- 680mm L x 75mm W x 930mm H
Product Weight : 5.5 KG
Product shipping Weight : 5.5 KG
