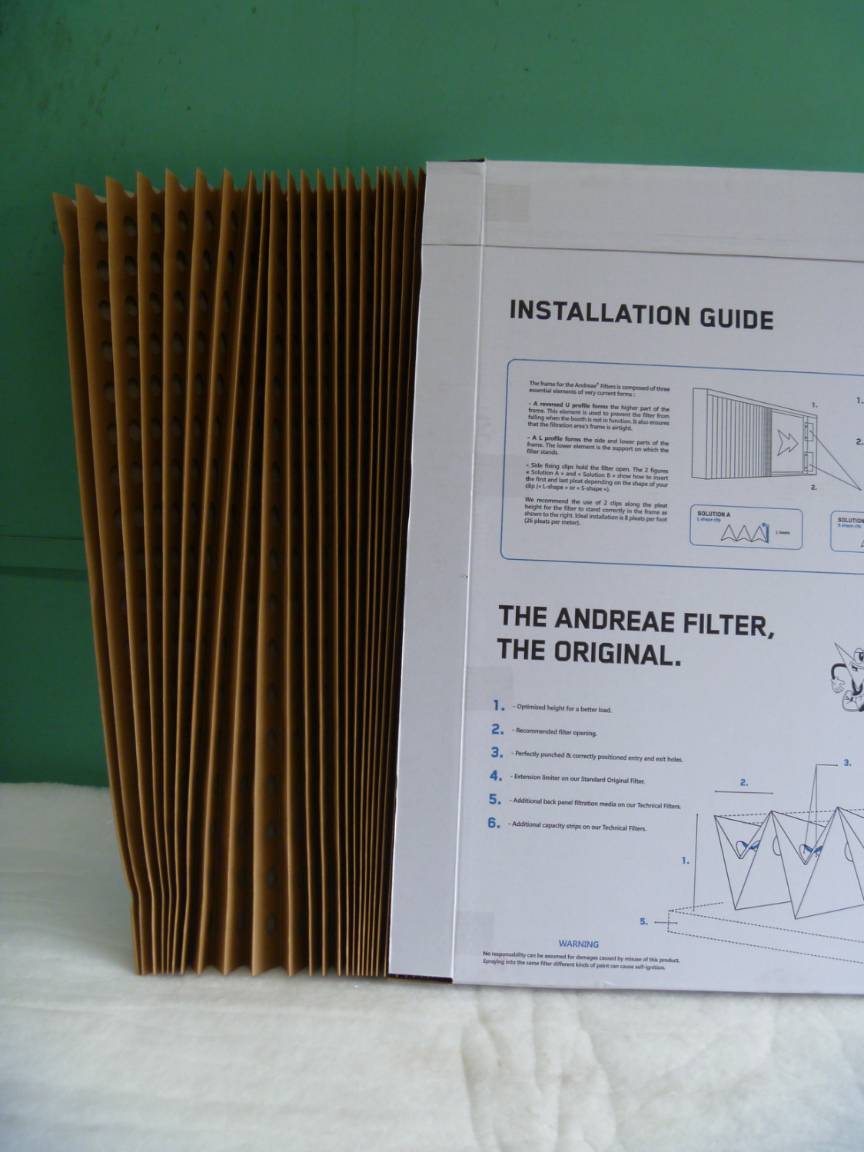

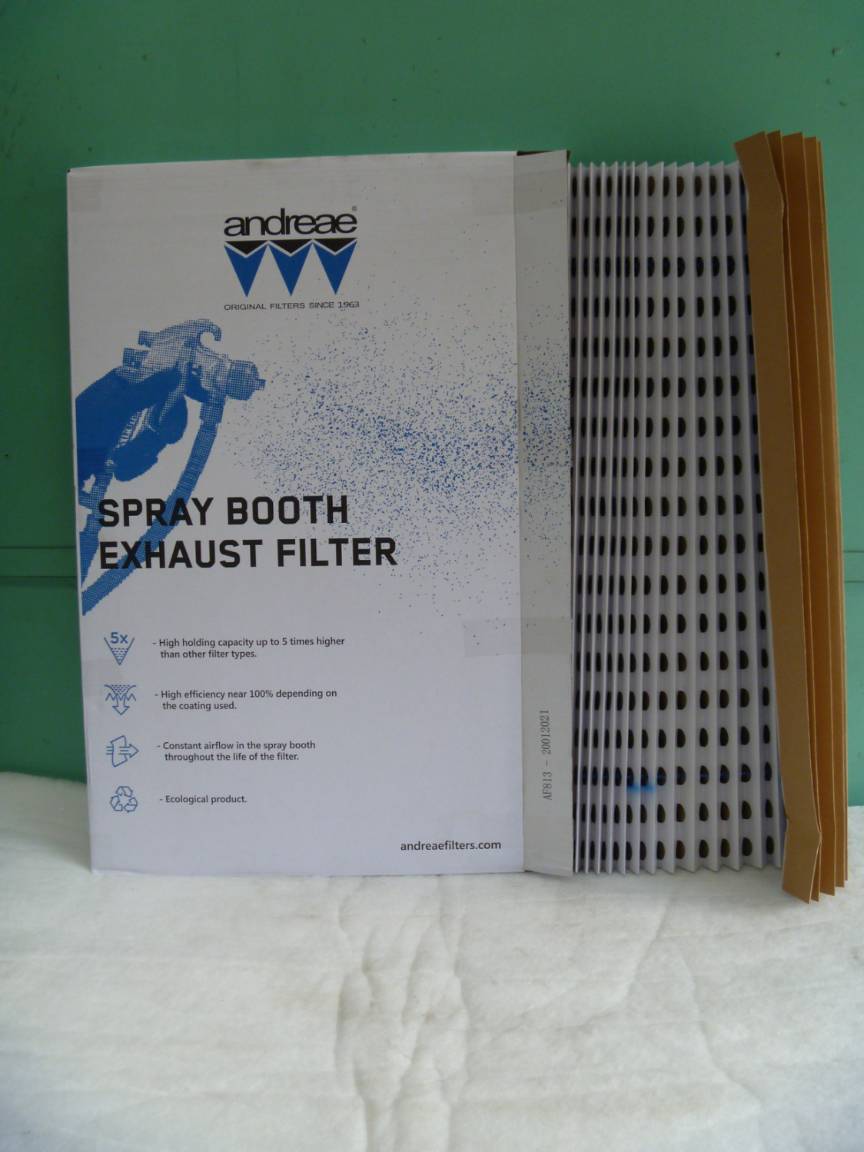

Andreae Standard Cardboard Exhaust Filter 900mm x 9.2m Box
The v-shaped front wall prevents over spray bounce back and particle migration. The deeper v-shape back wall captures over spray and deposits it outside of the airflow. The filter exhaust holes are positioned to maintain constant airflow during the loading phase. Static pressure increases slowly with the accumulation of over spray resulting in uniform airflow. Made out of 2 layers …
$120.00
Load lb/ft2
Lacquers: 2.04
High Solids: 2.45
Polyester: 2.66
Efficiency %
Lacquers: 93.10
High Solids: 98.20
Polyester: 97.80
Recommended Air Velocity
0.5 to 1m/s
Pressure drop at / by
0.5m/s: 20pa
0.75m/s: 30pa
1.0m/s: 40pa
Max. recommended pressure drop
128 pa (possible up to 256)
Product Dimensions : 9.2m L x 900mm H
Shipping Dimensions : BOX- 570mm L x 70mm W x 920mm H
Product Weight : 5.5 KG
Product shipping Weight : 5.5 KG
